Polestar
Vanguard Series
1” aluminum dome tweeter with ferromagnetic cooling system.
5” mid-bass driver with composite material cones that dampen excess vibrations.
8” bass drivers with resin treated composite material cones that dampen excess vibrations.
Each 8” bass driver is housed in its own discrete cabinet and thus will not interfere with each other. Furthermore, the cabinet is crossed braced to provide increased rigidity and thus reduces cabinet resonance.
Cabinet is finished in a hand crafted wood veneer.
Crossover is made from selected precision components and creates a highly accurate reproduction.
Vanguard Series

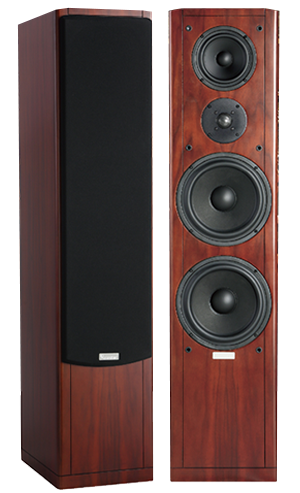

Vanguard V-F101
Main Speaker
8” driver x 2pcs + 5” driver x1pc + 1”ceramic Dome tweeter
Frequency Response: 35Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 250watts
Sensitivity: 91dB
Impedance: 4 ~ 8ohms
Dimension: 108cm(H) x 25cm(W) x 33.5cm(D)
Weight: 28.5Kgs (per piece)
Vanguard Series – real wood veneer
Vanguard Series
Vanguard V-F1
The Stereo Times Most Wanted Component Award Speaker
Main Speaker
6.5” driver x 2pcs + 1” ceramic Dome tweeter
Frequency Response: 40Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 150watts
Sensitivity: 90dB
Impedance: 4 ~ 8ohms
Dimension: 98.5cm (H) x 23.5cm (W) x 33.5cm (D)
Weight: 22Kgs (per piece)
Vanguard Series – real wood veneer
Vanguard Series

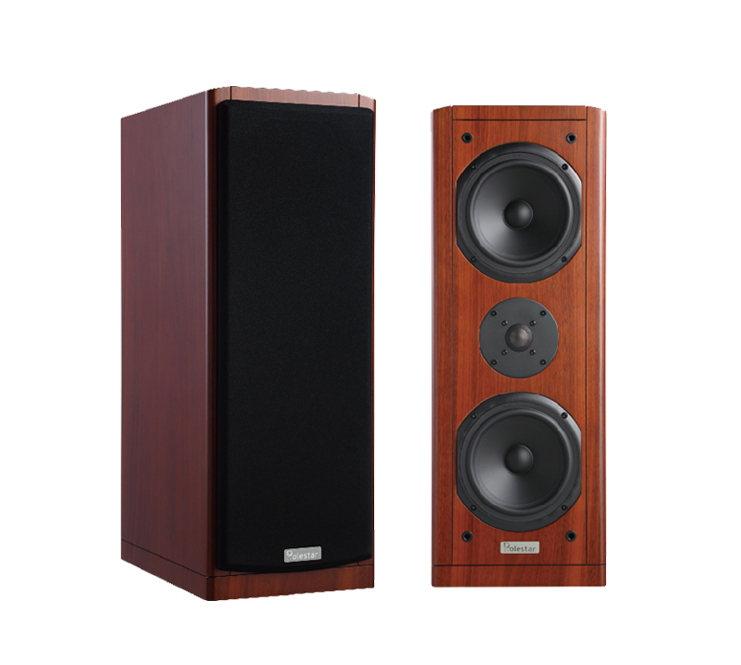

Vanguard V-B1
Bookshelf Speaker
6.5” driver x 2pcs + 1” ceramic Dome tweeter
Frequency Response: 40Hz ~ 20kHz ± 3dB
Power handling: 20 ~ 150watts
Sensitivity: 90dB
Impedance: 4 ~ 8ohms
Dimension: 61cm(H) x 23 cm(W) x 33.5 cm(D)
Weight: 14Kgs (per piece)
Vanguard Series – real wood veneer
Vanguard Series

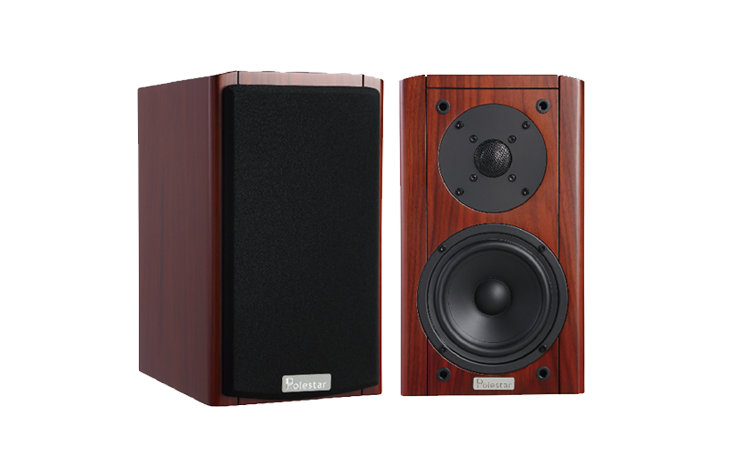

Vanguard V-R1
Effect Speaker
5” driver x 1pcs + 1” tweeter
Frequency Response: 60Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 100watts
Sensitivity: 88dB
Impedance: 4 ~ 8ohms
Dimension: 31.5cm(H) x 18.5cm(W) x 24.5cm(D)
Weight: 5Kgs (per piece)
Vanguard Series – real wood veneer
Vanguard Series

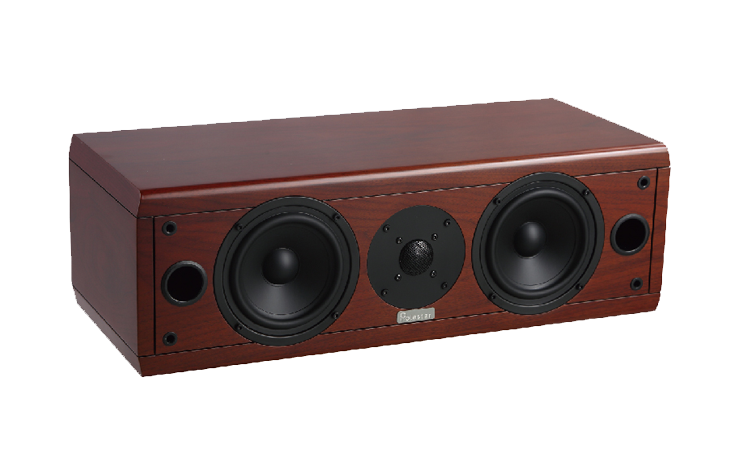

Vanguard V-C1
Center Speaker
5” driver x 2pcs + 1” tweeter
Frequency Response: 60Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 100watts
Sensitivity: 88dB
Impedance: 4 ~ 8ohms
Dimension: 18.5cm(H) x 55.5cm(W) x 24.5cm(D)
Weight: 8Kgs (per piece)
Vanguard Series – real wood veneer
Vanguard Series

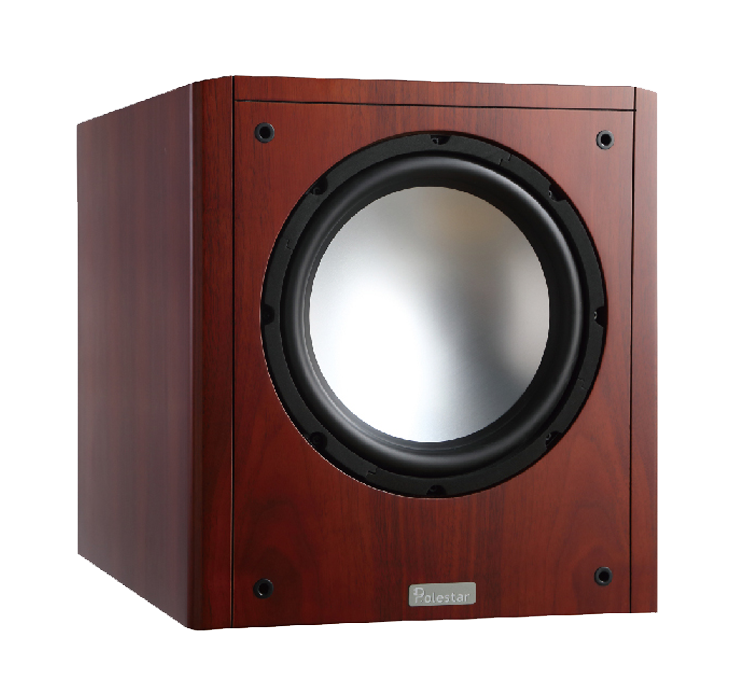

Vanguard V-SW1
Subwoofer
10” aluminum driver
Frequency Response: 30Hz ~ 150Hz ± 3dB
Power Handling: 300watts R.M.S. OUTPUT
Sensitivity: 88dB
Impedance: 4 ~ 8ohms
Dimension: 51.5cm(H) x 43cm(W) x 46cm(D)
Weight: 20Kgs (per piece)
Vanguard Series – real wood veneer
