Polestar

					In/On Wall Speaker
Vanguard / Opal Series
Specially designed home theater speaker that allows for on wall or in wall installation
The highly recognizable avant-garde design of the red rectangular tweeter panel conveys an exquisite feeling of confidence
The Maple Leaf denotes the high caliber of product
The proprietary aluminum in wall mounting brackets situated on both sides of the speaker allows for adjustable inclination and multi-angle correction making installation convenient and flexible.
The world's first, adjustable tilt angle into the wall, wall-mounted dual-purpose theater speakers
Two patented design rear ports prevent back wave interference and allows all components to harmoniously operate and produce detailed reproduction while eliminating waste heat.




					In/On Wall Vanguard Series

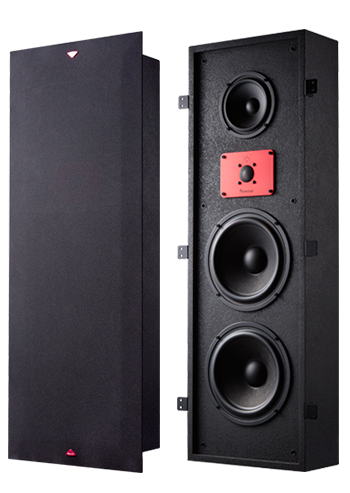

V-IW8F
Main Speaker

8” driver x 2pcs + 5” driver x 1pc + 1” tweeter
Frequency: 50Hz ~ 20kHz ± 3dB
Power Handling: 100 ~ 350watts
Sensitivity: 89dB
Impedance: 4 ~ 8ohms
Box Dimension: 89.5cm(H) x 29.8cm(W) x 13.6cm(D)
Cover Dimension: 96.7cm(H) x 36.8cm(W) x 0.5cm(D)
Weight: 15.8Kgs (pc)
							In/On Wall Vanguard Series
In/On Wall Vanguard Series

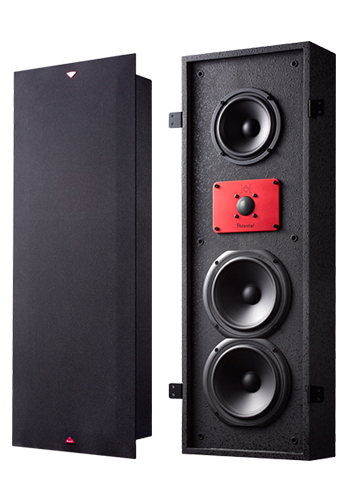

V-IW6F
Main Speaker
6.5” driver x 2pcs + 5” driver x 1pc + 1” tweeter
Frequency: 50Hz ~ 20kHz ± 3dB
Power Handling: 100 ~ 300watts
Sensitivity: 88 dB
Impedance: 4 ~ 8ohms
Box Dimension: 75cm(H) x 26cm(W) x 11cm(D)
Cover Dimension: 68.5cm(H) x 33.2cm(W) x 0.5cm(D)
Weight: 10.55Kgs (PC)

							In/On Wall Vanguard Series

						In/On Wall Vanguard Series

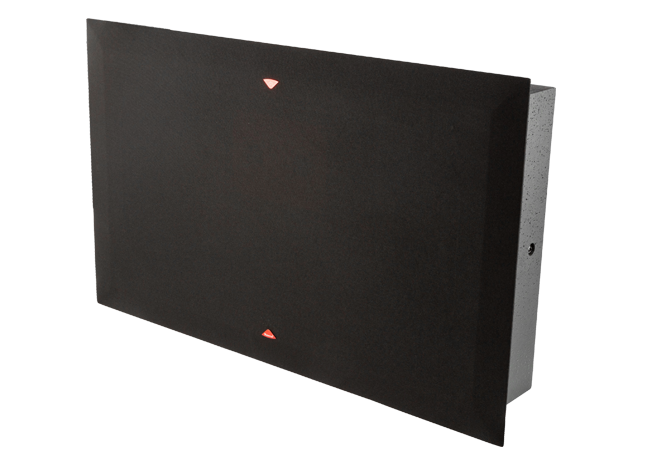

V-IW8C
Center Speaker

8” driver x 2pcs + 5” driver x 1pc + 1” tweeter x2pcs
Frequency: 50Hz ~ 20kHz ± 3dB
Power Handling: 100 ~ 350watts
Sensitivity: 89dB
Impedance: 4~8ohms
Box Dimension:45.6cm(H) x 79cm(W) x 13.6cm(D)
Cover Dimension:52.1cm(H) x 85.5cm(W) x 0.5cm(D)
Weight: 17Kgs (PC)
							In/On Wall Vanguard Series
In/On Wall Vanguard Series

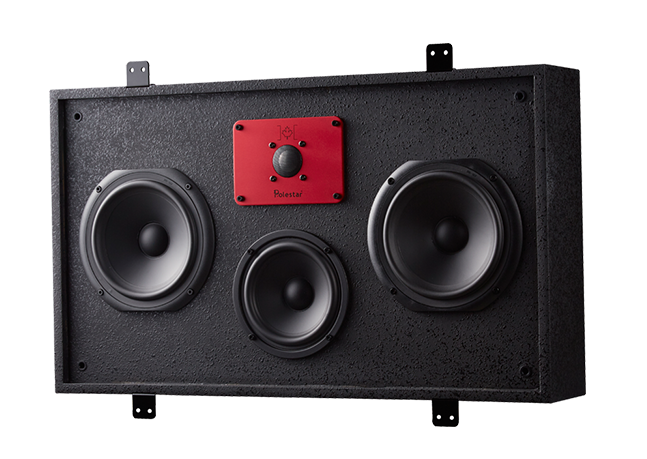

V-IW6C
Center Speaker

6.5” driver x 2pcs + 5” driver x 1pc + 1” tweeter
Frequency: 50Hz ~ 20kHz ± 3dB
Power Handling: 100 ~ 300watts
Sensitivity: 88dB
Impedance: 4~8ohms
Box Dimension: 35.3cm(H) x 61cm(W) x 11cm(D)
Cover Dimension: 42.3cm(H) x 68cm(W) x 0.5cm(D)
Weight: 11.12Kgs (PC)
							In/On Wall Vanguard Series


					In/On Wall Opal Series

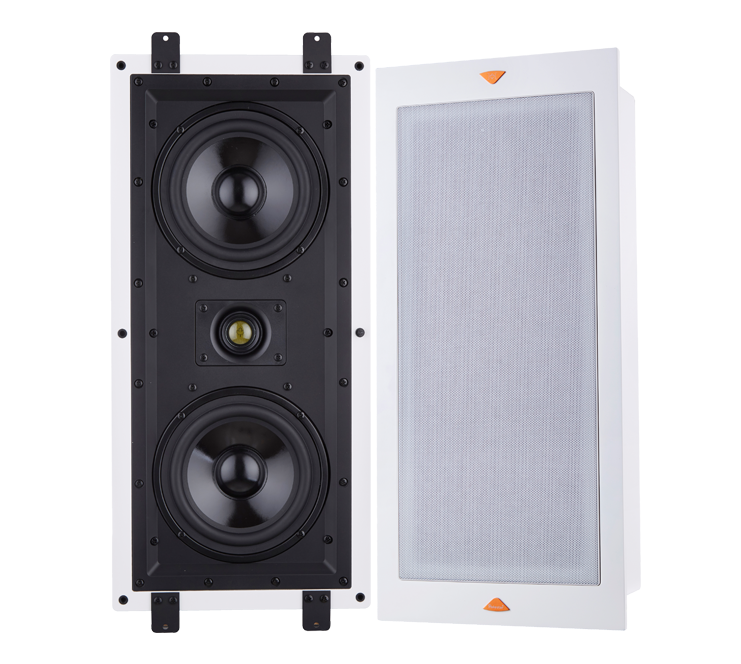

I-OP66LR
Main Speaker
*The tweeter is adjustable and can be aimed towards the desired direction.
*A traditional bass reflex design was abandoned in pursuit of designing the slimmest speaker possible. The two way, three component bass reflex design uses the space between the dual 6.5” mid-bass drivers and the speaker cabinet to create a bass reflex.
6.5” driver x 2pcs +  1”tweeter x 1pcs
Frequency: 60Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 200watts
Sensitivity: 89dB
Impedance: 4 ~ 8ohms
Box Dimension: 54.3cm(H) x 25.5cm(W) x 10cm(D)
Wooded Cover Dimension: : 61.5cm(H) x 27.5cm(W) x 0.9cm(D)
Weight: 7Kgs (PC)
							*A traditional bass reflex design was abandoned in pursuit of designing the slimmest speaker possible. The two way, three component bass reflex design uses the space between the dual 6.5” mid-bass drivers and the speaker cabinet to create a bass reflex.
