In Wall Speaker
Elite Series
Adjustable angle neodymium magent tweeters provide a better sense of envelopment and clarity of sound.
The mid-bass drive cones are specially treated to provide natural bass reproduction and a dynamic sound stage.
Specially selected low distortion crossover components ensure a consistency of sound among all speakers.
Gold plated binding posts allow for lossless transmission and a fuller sound stage.
A rigid cabinet is made of highly polymer and additionally tight-fitting metal mesh to reduce resonance, which produces a much cleaner performance.
In wall (In ceiling) speakers with back box:
The cabinet works in tandem with the drivers to create the low bass frequencies and during design engineers studied out a best sound effect based on given cabinet sizing. With the back box the bass performance will be enhanced and there is the added benefit of protection from environmental factors, which can prematurely age the speaker components. The back box also prevents vermin such as cockroaches and rates from adversely interacting with any of components inside the speaker.

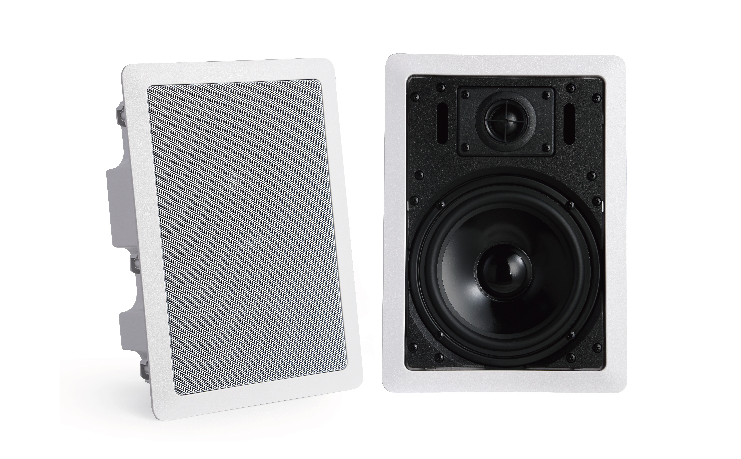

Elite Series
In-62BX
In Wall Speaker
Neodymium magnet tweeterx1pc
+ 6” driver *1 pc
Frequency Response: 50Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 150watts
Sensitivity: 88dB
Impedance: 4 - 8ohms
2way Bass Reflex
Dimension: 30.7cm(H) x 22cm(W) x 11cm(D)
Weight: 3Kgs (per piece)
+ 6” driver *1 pc

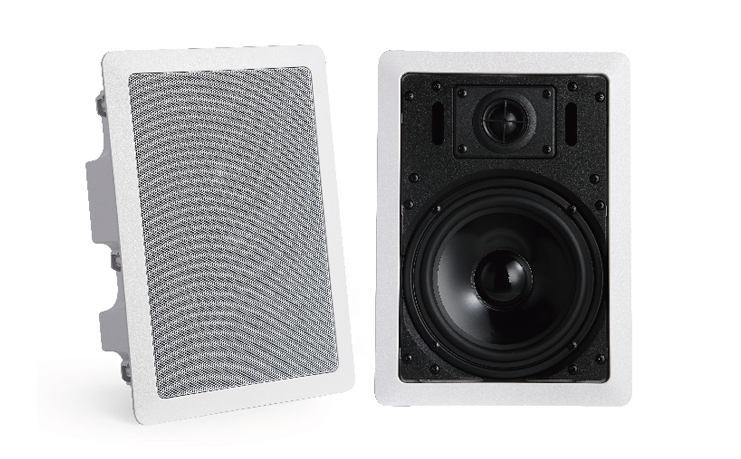

Elite Series
In-82BX
In Wall Speaker
Neodymium magnet tweeterx1pc
+ 8” driver *1 pc
Frequency Response: 50Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 200watts
Sensitivity: 88dB
Impedance: 4 - 8ohms
2way Bass Reflex
Dimension: 35.8cm(H) x 25.6cm(W) x 11cm(D)
Weight: 3.3Kgs (per piece)
+ 8” driver *1 pc

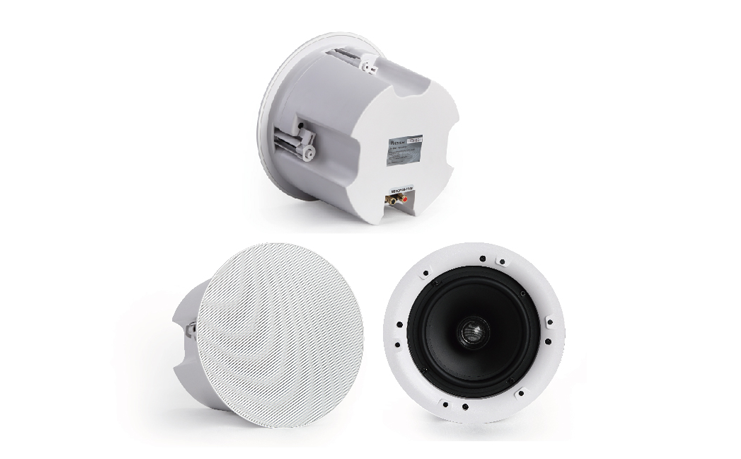

Elite Series
cs-6c
In Wall Speaker
Coaxial Neodymium magnet tweeterx1pc
+ 6” driver *1 pc
Frequency Response: 50Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 150watts
Sensitivity: 88dB
Impedance: 4 - 8ohms
2way Bass Reflex
Dimension: 16.2cm(H) x 23.2cm(W) x 23.2cm(D)
Weight: 3Kgs (per piece)
+ 6” driver *1 pc


Opal Series
Cabinet is composed of MDF and this reduces the amount of resonance within the speaker.
Ultra slim depth of 9cm.
Dual 6.5” mid-bass drivers pair with a 1.5” silk dome tweeter. In consideration that some installations will require the speaker be in a sub optimal position, the tweeter is adjustable and can be aimed towards the desired direction.
A traditional bass reflex design was abandoned in pursuit of designing the slimmest speaker possible.The two way, three component bass reflex design uses the space between the dual 6.5” mid-bass drivers and the speaker cabinet to create a bass reflex.
The tweeter uses neodymium magnet driver the strong magnetism improve performance.
The voice coil is lubricated with special ferromagnetic fluid that improve heat dissipation during long operation.
The soft white exterior of the speaker blends into any home and is easily paired with any interior design.

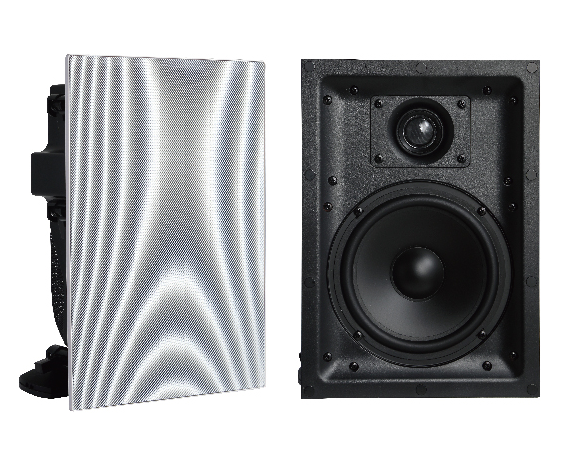

Opal Series
I-OP6S
In Wall Speaker
Neodymium magnet tweeterx1pc
+ 6” driver *1 pc
Frequency Response: 50Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 150watts
Sensitivity: 88dB
Impedance: 4 - 8ohms
2way Bass Reflex
Dimension: 30.6cm(H) x 21.8cm(W) x 10cm(D)
Weight: 3Kgs (per piece)
+ 6” driver *1 pc

Opal Series
I-OP8S
In Wall Speaker
Neodymium magnet tweeterx1pc
+ 8” driver *1 pc
Frequency Response: 50Hz-20kHz±3dB
Power Handling:20-200watts
Sensitivity:88dB
Impedance: 4 - 8ohms
2way Bass Reflex
Dimension:36.8cm(H) x 26.6cm(W) x 11.2cm(D)
Weight:3.2Kgs (per piece)
+ 8” driver *1 pc
AV Series

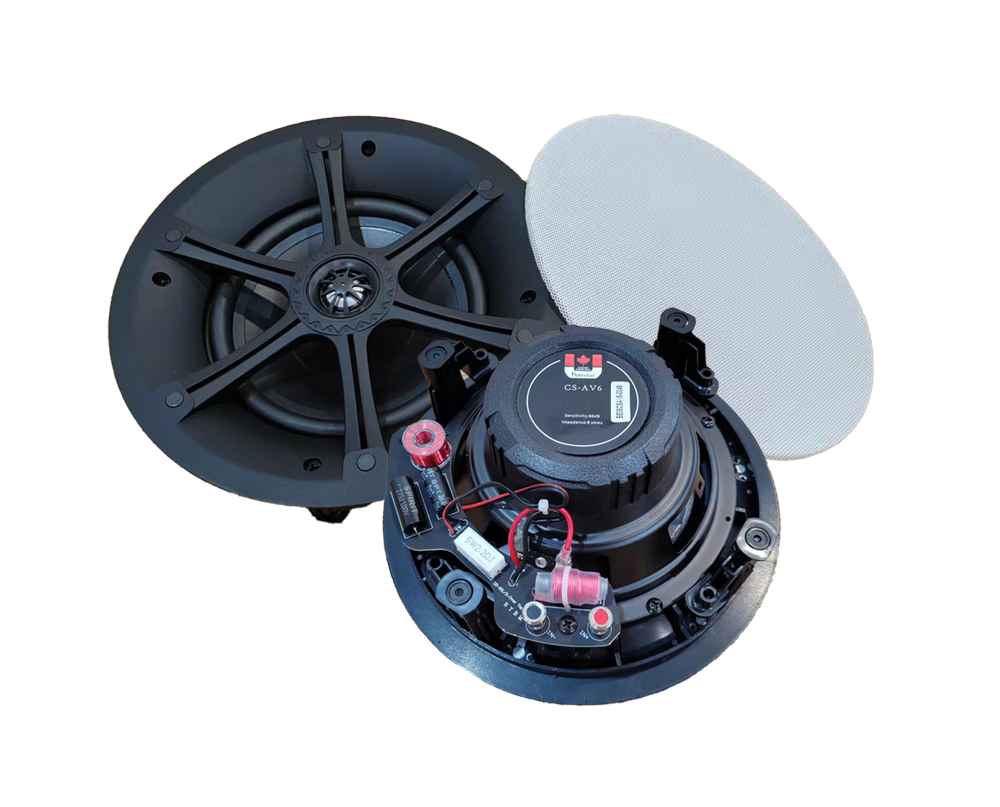

AV Series
CS-AV6
In Ceiling Speaker
Coaxial Neodymium magnet tweeterx1pc+ 6.5” driver x1 pc
Frequency Response:80Hz~20kHz±3dB
Power Handling:30~100watts
Sensitivity:92dB
Impedance: 8ohms, 2way Bass Reflex
2way Bass Reflex
Dimension:104mm(H)x225mm(W)x225mm(D)
Opening dimension:200mm
Weight:1.33Kgs(per piece)
