Subwoofer
Agility!
The large driver with high cone excursion design allows for nimble response times and for the precise instantaneous delivery of that deep bass boom.
Accuracy!
The 12” speaker cone is made of natural plant materials with the backside coated in a thin layer of metallic grains for added rigidity. Sandwiched in the middle is a three layer paper composite. This unique cone design is both rigid yet lightweight, which is perfect for the accurate and dynamic reproduction of bass frequencies.
Depth!
The 44mm thick panels of the cabinet along with internal bracing creates a very rigid structure that is both effective at damping internal cabinet resonance and producing large dynamic wave lengths to produce the most solid and dramatic bass experience.
Power!
The 500 Watt output Class D amplifier provides high efficiency and ample punch. The speaker cone, cabinet design and powerful amplifier all work in concert to provide an explosive and tightly controlled depth.



            Thunder series

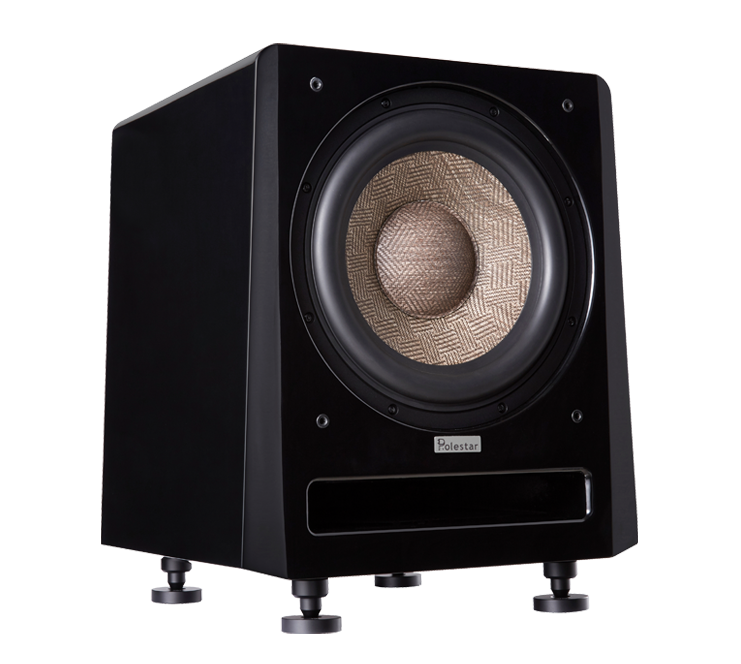

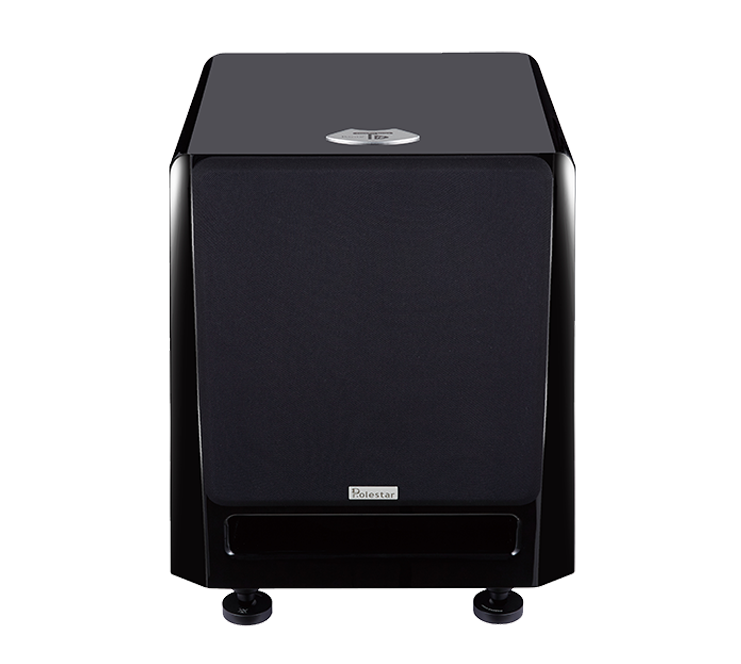

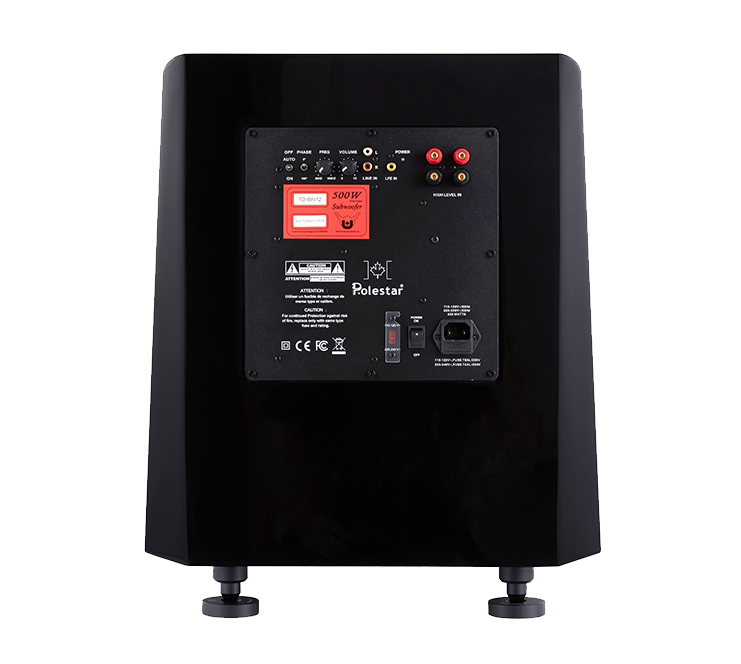

TD-SW12
Subwoofer

System: Class D Amplifier/ Bass Reflex/12 inches BPIC Diver
Analog inputs: L/R /LEF
High level input: L/R
Auto ON/OFF: Yes
Box Principle: Bass Reflex
Low Pass Filter: 40Hz-160Hz
Phase Adjustment: 0-180°
Amplifier power: 500W/4Ω
AC power input: 100 - 120V/220 - 240V 50/60Hz
Frequency Response:30Hz – 250Hz
Dimension: 48cm(H)x42.7cm(W)x40cm(D) without floor cone
Weight: 35.5Kgs (without floor cone)
							Thunder series
Wizard Series

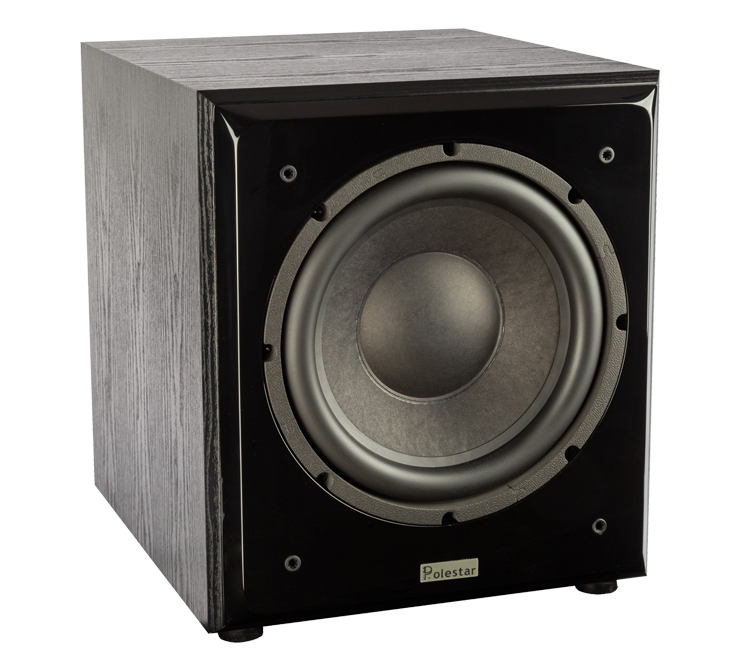

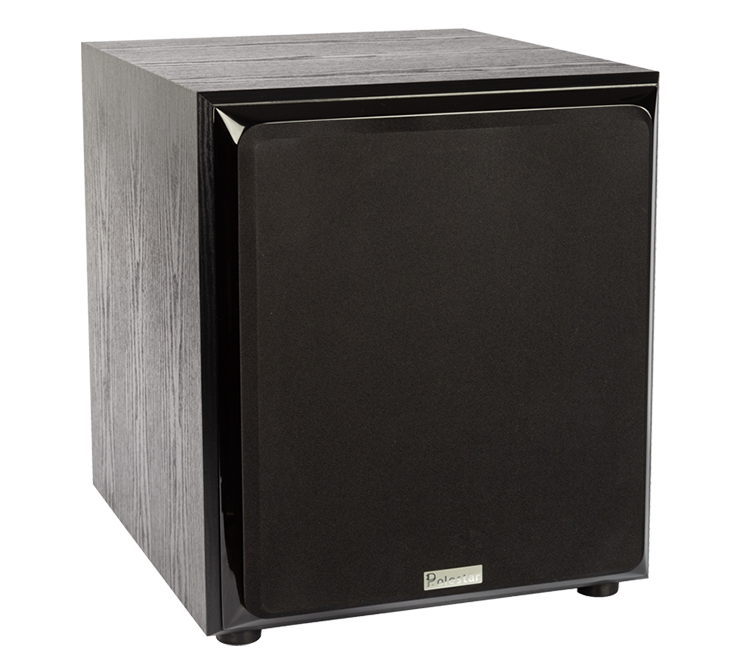

Wizard W-SW12
Subwoofer

12” driver
Frequency Response: 30Hz ~ 150Hz ± 3dB
Power Handling: 500watts R.M.S. OUTPUT
Sensitivity: 88dB
Impedance: 4 ~ 8ohms
Dimension: 45.05cm(H) x 42.7cm(W) x 46.5cm(D)
Weight: 27Kgs (per piece)
							WIZARD SERIES
Wizard Series
Wizard W-SW10
Subwoofer

10” driver
Frequency Response: 30Hz ~ 150Hz ± 3dB
Power Handling: 300watts R.M.S. OUTPUT
Sensitivity: 88dB
Impedance: 4 ~ 8ohms
Dimension: 37cm(H) x 35.5cm(W) x 41.8cm(D)
Weight: 19Kgs (per piece)
							Wizard Series

					Wizard Series

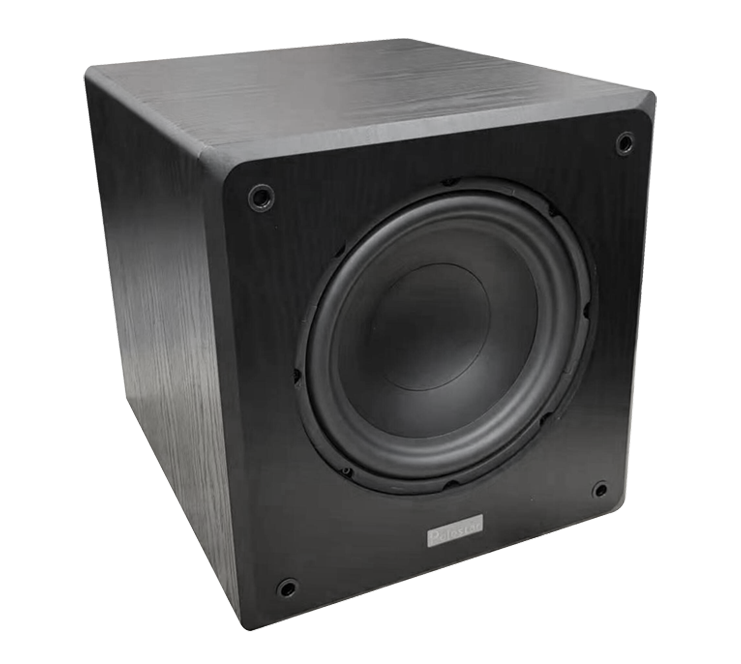

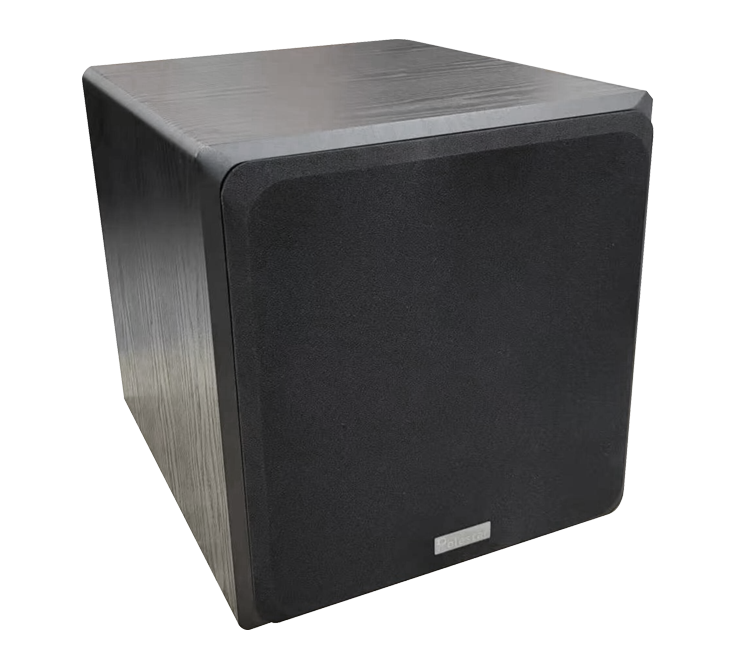

Wizard W-SUB10
Subwoofer

10"driverx1
Power Handling: 150watts R.M.S. OUTPUT
Frequency Response: 30Hz ~ 150Hz ± 3dB
Sensitivity: 89dB
Impedance: 4~8ohm
Dimension: 37cm(H) x 35.5cm(W) x 44cm(D)
Weight: 16kgs (per piece)
							Wizard Series
Vanguard Series
Vanguard V-SW1
Subwoofer

10” aluminum driver
Frequency Response: 30Hz ~ 150Hz ± 3dB
Power Handling: 300watts R.M.S. OUTPUT
Sensitivity: 88dB
Impedance: 4 ~ 8ohms
Dimension: 51.5cm(H) x 43cm(W) x 46cm(D)
Weight: 20Kgs (per piece)
							Vanguard Series – real wood veneer

						Lifestyle Series

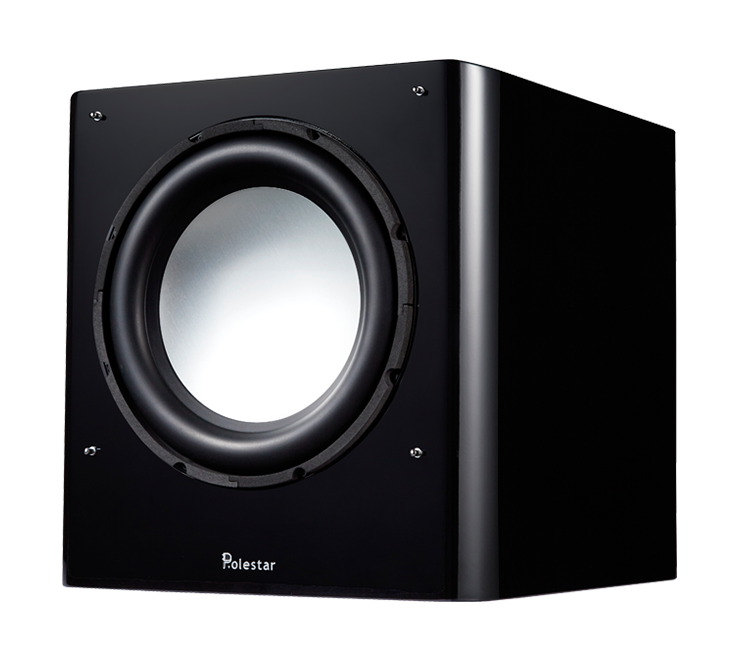

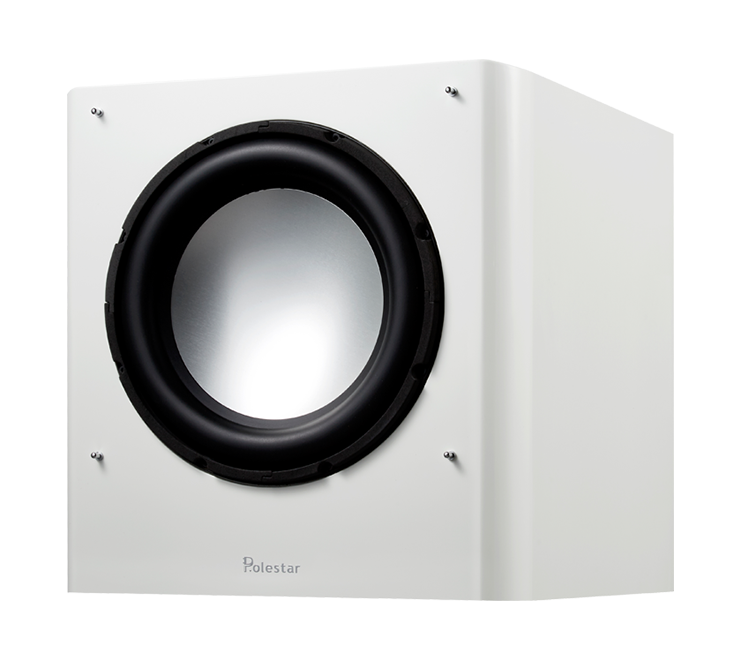

Lifestyle LS-SW10V2
Subwoofer

10” aluminum driver
Frequency Response: 30Hz ~ 150Hz ± 3dB
Power Handling: 300watts R.M.S. OUTPUT
Sensitivity: 88dB
Impedance: 4 ~ 8ohms
Dimension: 37cm(H) x 35.5cm(W) x 43.3cm(D)
Weight: 20Kgs (per piece)
							Lifestyle Series
Lifestyle Series

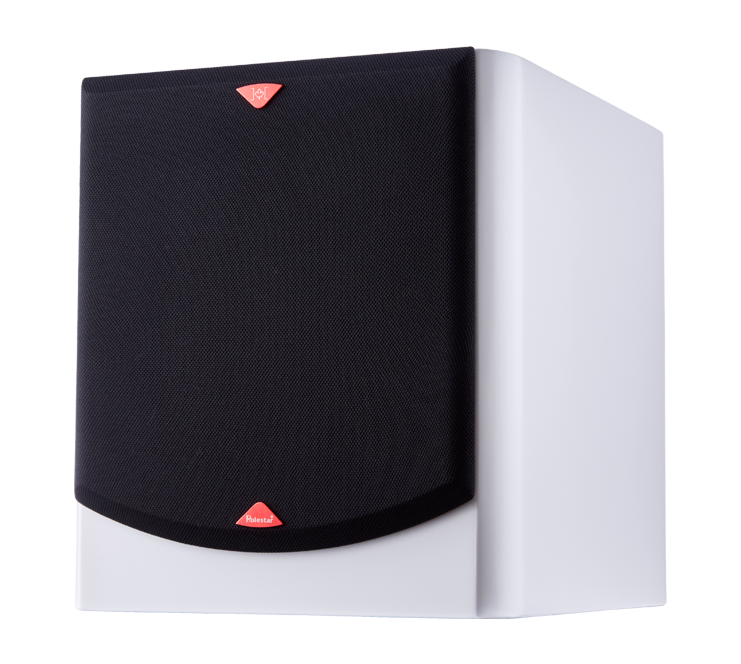

Lifestyle LS-SW8V2
Subwoofer

8” driver
Power Handling: 150watts R.M.S. OUTPUT
Dimension: 31.3cm(H) x 27.8cm(W) x 34.2cm(D)
Weight: 13.8Kgs (per piece)
							Lifestyle Series
