Polestar

					On Wall Speaker
Vanguard / Wizard / Satellite Series
*Tweeter design uses a shaped aluminum plate along with ferromagnetic fluid for heat dissipation
*Midrange incorporates an isolated design to minimize distortion
*Space saving ultra slim cabinet design has a depth of 14.5mm including the grille
*Included with the speaker mounting plate
*Speakers perform with a short response time and good control at higher volumes




					On Wall Vanguard Series

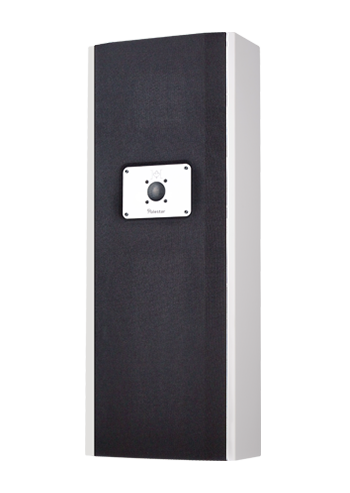

V-OW8F
Main Speaker

8” driver x 1pcs + 5” driver x 1pc + 1” tweeter
Frequency: 50Hz ~ 20kHz ± 3dB
Power Handling: 100 ~ 350watts
Sensitivity: 89dB
Impedance: 4 ~ 8ohms
Dimension: 76.5cm(H) x 29.8cm(W) x 14.5cm(D)
Weight: 13.3Kgs (PC)
							On Wall Vanguard Series
On Wall Vanguard Series
V-OW6F
Main Speaker

6.5” driver x 1pcs + 5” driver x 1pc + 1” tweeter
Frequency: 50Hz ~ 20kHz ± 3dB
Power Handling: 100 ~ 300watts
Sensitivity: 88dB
Impedance: 4 ~ 8ohms
Dimension: 62cm(H) x 26.1cm(W) x 11.8cm(D)
Weight: 8.8Kgs (PC)
							On Wall Vanguard Series


					On Wall Vanguard Series

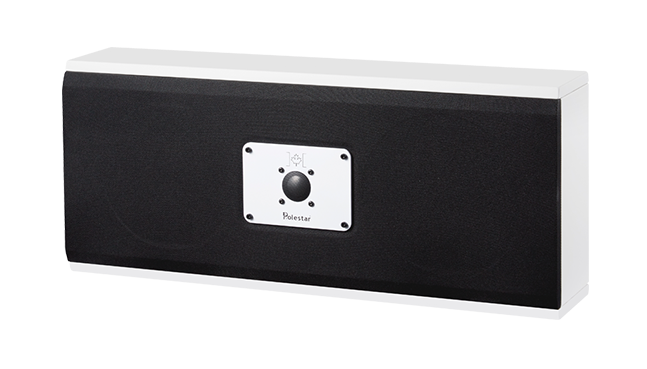

V-OW6C
Center Speaker

6.5” driver x 2pcs + 1” tweeter
Frequency: 50Hz ~ 20kHz ± 3dB
Power Handling: 100 ~ 300watts
Sensitivity: 88dB
Impedance: 4 ~ 8ohms
Dimension: 26.1cm(H) x 62cm(W) x 11.8cm(D)
Weight: 8.8Kgs (PC)
							On Wall Vanguard Series
Wizard Series

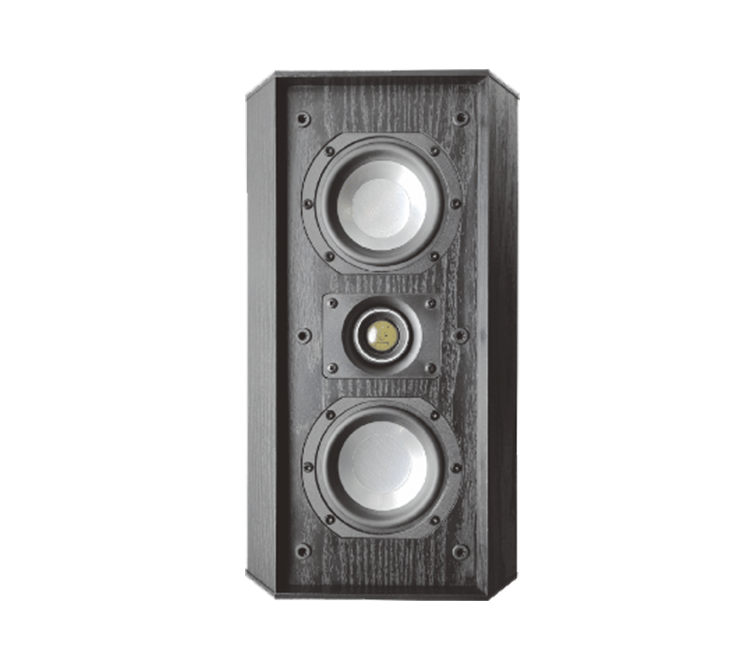

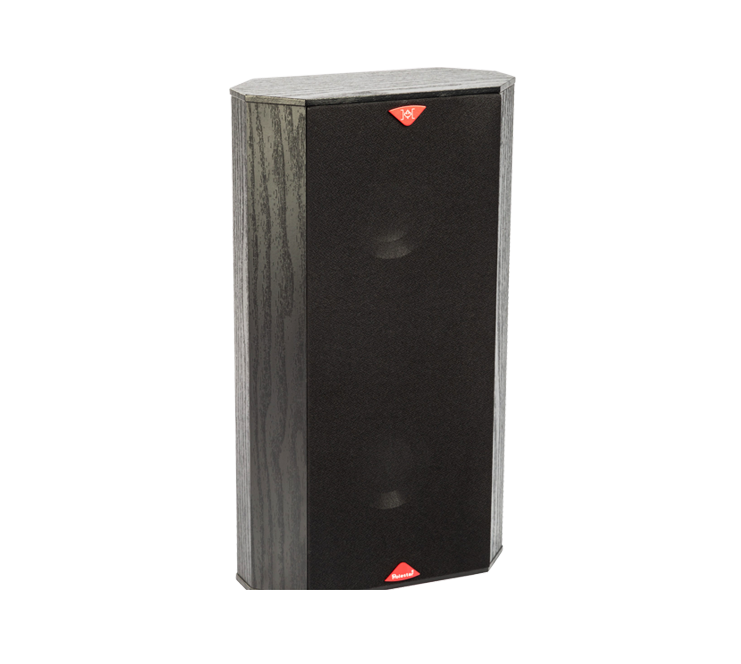

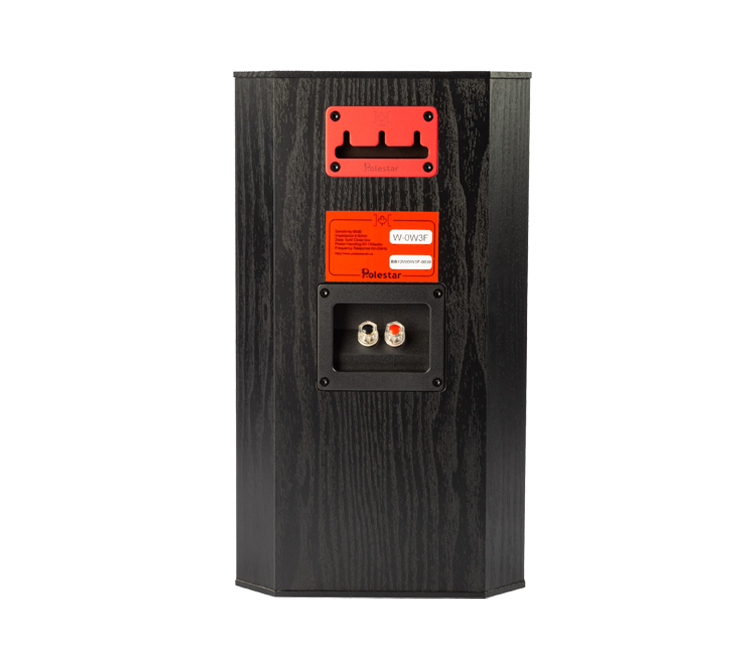

W-OW3F
Main Speaker / Rear Speaker
*With a one-inch cat's eye adjustable angle tweeter and two 4-inch aluminum diaphragm mid-woofers.
*With flat hexagonal box design in addition to the elimination of standing waves in the box to enhance the clarity of the sound, but also more into the space to increase the sense of beauty.
*As a wall-mounted speaker must consider the impact of the speaker's mounting position on the sound. Adjustable treble directivity provides more tuning adaptability, so that more good sound to provide the necessary conditions. The back of the box comes with a special hanging plate of simple and easy to install.
4” aluminum driver x 2PCS +1” tweeter
Frequency: 60Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 150 Watts
Sensitivity: 88dB
Impedance: 4 ~ 8ohms
Dimension: 38cm(H) x 21.6cm(W) x 10cm(D)
Weight: 4.6Kgs (PC)
							*With flat hexagonal box design in addition to the elimination of standing waves in the box to enhance the clarity of the sound, but also more into the space to increase the sense of beauty.
*As a wall-mounted speaker must consider the impact of the speaker's mounting position on the sound. Adjustable treble directivity provides more tuning adaptability, so that more good sound to provide the necessary conditions. The back of the box comes with a special hanging plate of simple and easy to install.
Wizard Series
On Wall Wizard Series

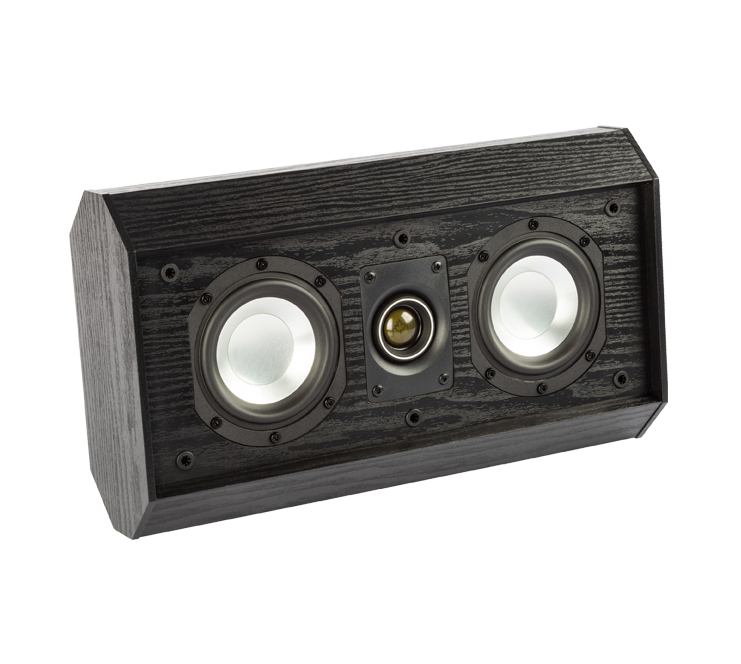

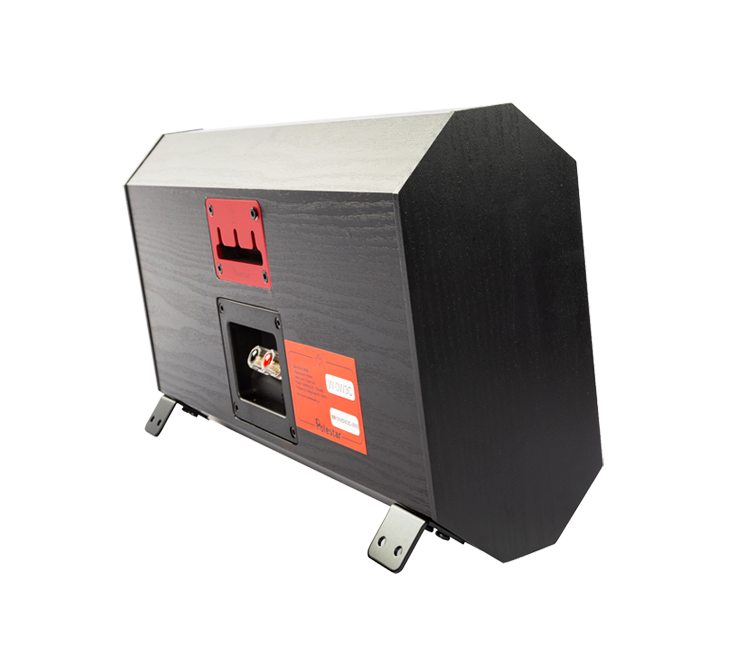

W-OW3C
Center Speaker

4” aluminum driver x 2PCS +1” tweeter
Frequency: 60Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 150 Watts
Sensitivity: 88dB
Impedance: 4 ~ 8ohms
Dimension: 21.6cm(H) x 38cm(W) x 10cm(D)
Weight: 4.6Kgs (PC)
							On Wall Vanguard Series
On Wall Satellite Series

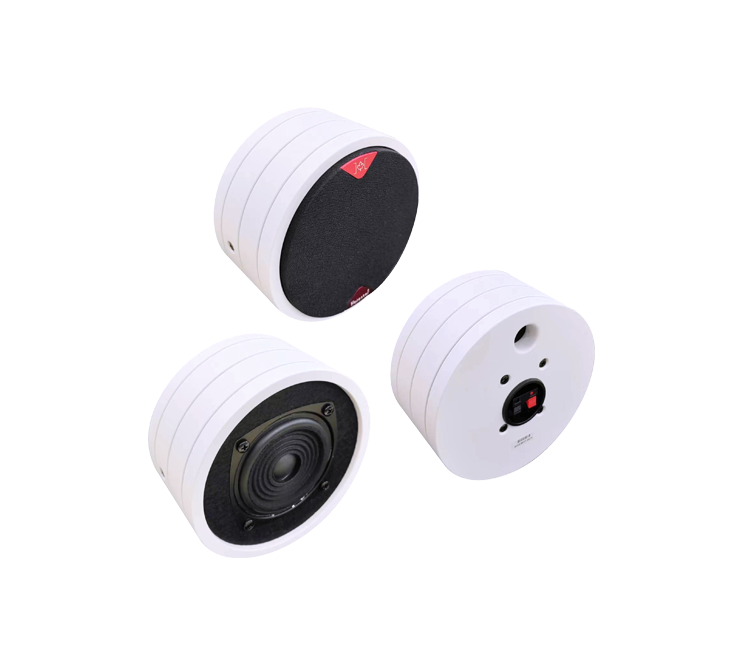

HT-1
Mini Speaker
*The venting ports that increase efficiency and makes the components easier to drive.
*Rapid reset system with magnetic levitation of the unit allows the vibration system to return to the position of the rapid signal retention is more complete.
*Novel duel-diaphragm design: The primary diaphragm and sub diaphragm are made with different materials and also shape slightly differently. The diaphragms work in concert with each other to improve efficiency, stability and diffusion.
3” full range driver
Frequency Response: 65Hz ~ 20kHz ± 3dB
Power Handling: 20 ~ 100watts
Sensitivity: 82dB
Impedance: 8ohms
Dimension: 13cm(D) x 7cm(D)
Weight: 1.2Kgs (per piece)
							*Rapid reset system with magnetic levitation of the unit allows the vibration system to return to the position of the rapid signal retention is more complete.
*Novel duel-diaphragm design: The primary diaphragm and sub diaphragm are made with different materials and also shape slightly differently. The diaphragms work in concert with each other to improve efficiency, stability and diffusion.
On Wall Satellite Series
